Infrared Technology
Reaching the full spectrum needed for an optimal grow & yield

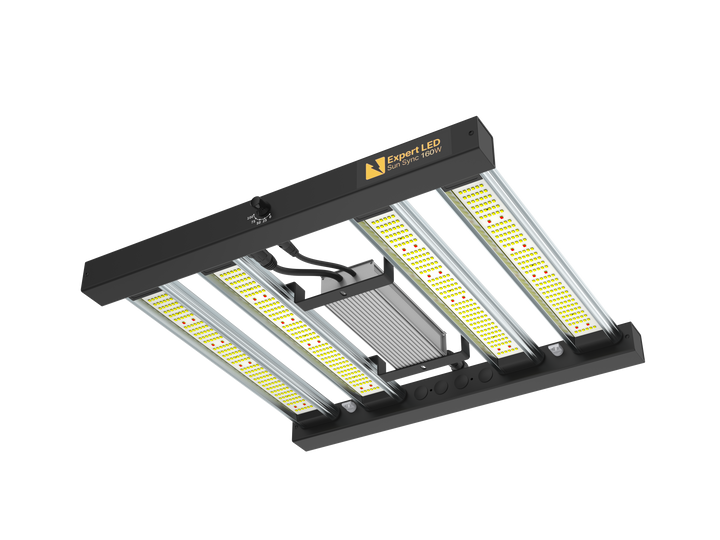

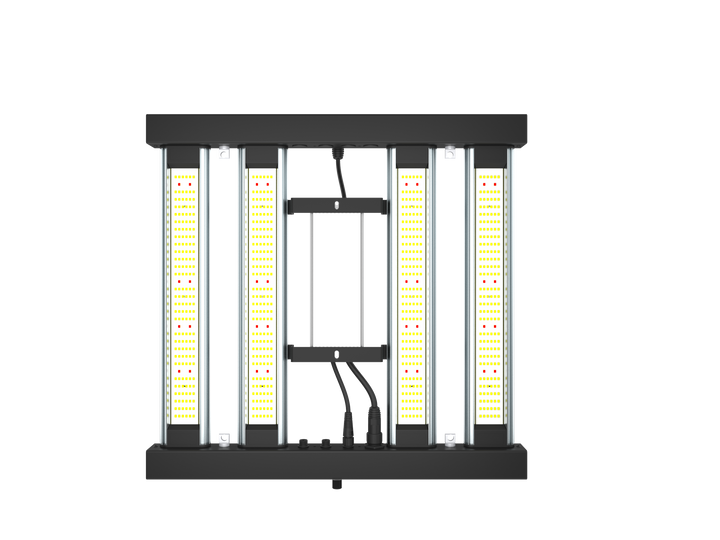

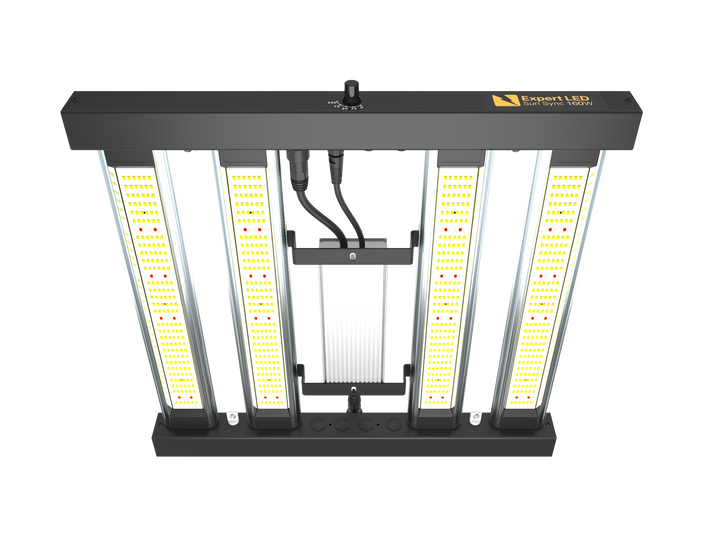

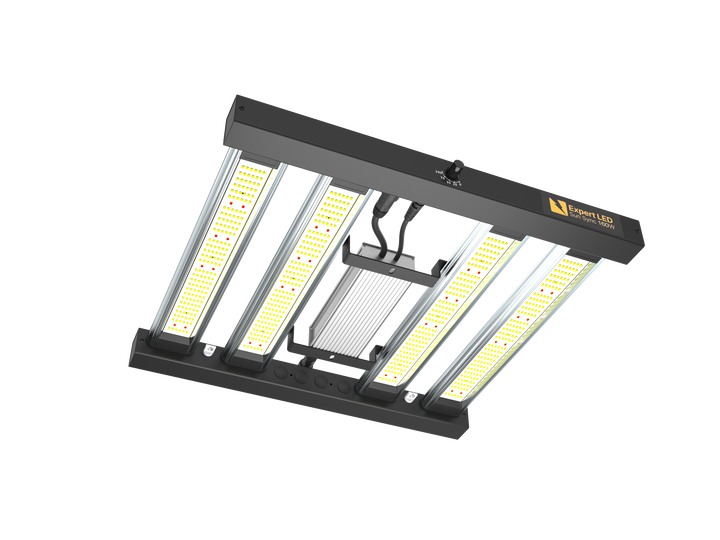

The 160W LED Grow Light offers a powerful, efficient, and customizable lighting solution for indoor plant growth.
The package includes:
- 1x 160W LED Fixture (LED driver included, need assembling)
- 1x Power Cable
- 1x RS485 Signal Cable
- 2x Adjustable Hanging Kits
- 2x un-adjustable Hanging Kits
Here are its key features:
- Powerful Output: 160W±5% power ensures ample light for plant growth.
- Versatile Application: Ideal for all growth stages, from seedlings to flowering.
- Efficient Design: Compact size (500*500*50mm) maximizes light coverage in various grow spaces.

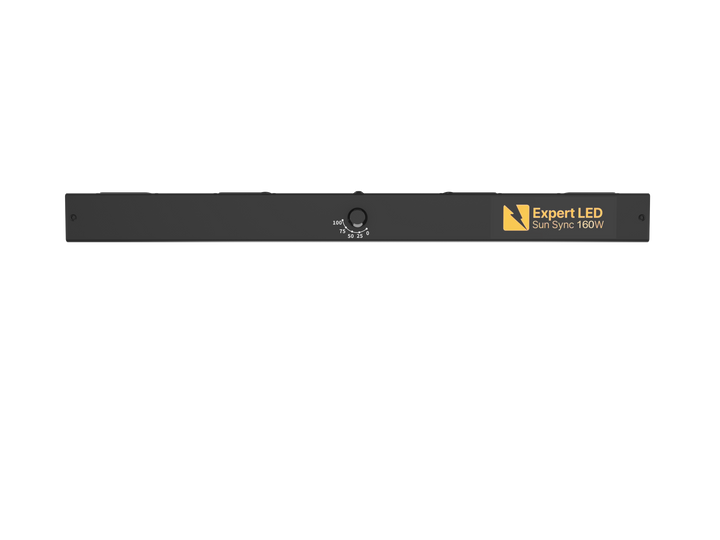

- Customizable Control: Dimming knob allows easy adjustment from 0-100% light intensity.

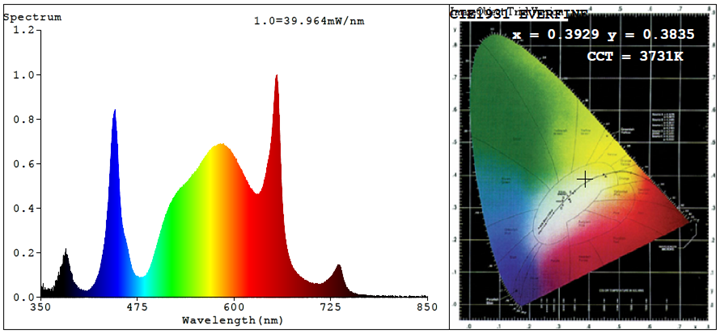

- Full Spectrum Lighting: Provides a comprehensive light spectrum essential for all growth stages.
- Enhanced Efficiency: High efficacy of 2.7 umol/j and PPF of 432 umol/s maximize energy efficiency.

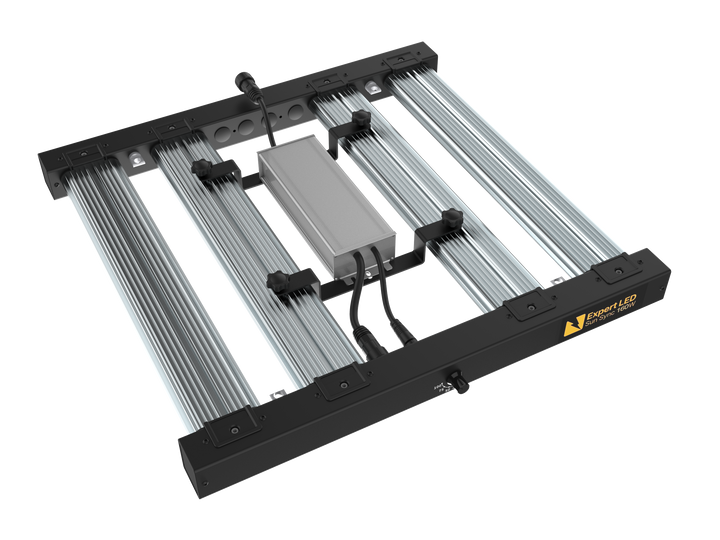

- Durable Construction: Sturdy aluminum LED bar structure and robust Sosen LED driver ensure longevity.
- User-Friendly Installation: Adjustable hanging kits facilitate hassle-free setup.
- Advanced Control Options: Daisy-chain support enables multi-light connectivity for centralized control.
- Temperature Regulation: Operates within a wide temperature range (-20°C to 35°C) for consistent performance.
- Safety Measures: Includes timer settings and over-temperature protection for user safety.
The 160W LED Grow Light is designed to meet the needs of both hobbyists and professional growers, offering reliability, efficiency, and ease of use for optimal plant growth indoors.
Stage | Settings | Species Growth Range | ||||
---|---|---|---|---|---|---|
Brightness | Hanging Height | Working Hours | Canna Plants | Tomatoes | Peppers | |
Seedling | 40% | 20" (50cm) | 18 on / 6 off | 200-400 | 150-350 | 150-350 |
Veg | 60% | 23" (58cm) | 18 on / 6 off | 400-600 | 350-600 | 300-600 |
Flower | 80%-100% | 12" (30cm) | 12 on / 12 off | 600-1000 (No CO2) | 600+ | 600+ |
Reaching the full spectrum needed for an optimal grow & yield
All three LED fixtures (240W, 420W, and 830W) have an impressive lifespan of up to 50,000 hours. This means they are designed to provide reliable and long-lasting illumination, reducing the need for frequent replacements and maintenance.
Yes, these LED fixtures are highly energy-efficient. The 240W, 420W, and 800W fixtures all use advanced LED technology that provides high luminous efficacy, ensuring that more energy is converted into light rather than heat. This results in lower energy consumption and cost savings on electricity bills.
These LED fixtures offer flexible color temperature options to suit different lighting needs. The available color temperatures are typically 3000K (warm white), 4000K (neutral white), and 5000K (cool white). This allows customers to choose the right ambiance for their specific application.
The LED fixtures (240W, 420W, and 800W) come with versatile mounting options to accommodate various installation needs. They can be mounted using a standard bracket mount, trunnion mount, or a pole mount. This flexibility ensures easy installation in different environments, such as warehouses, stadiums, and industrial areas.
Feature | 160W LED Fixture | 240W LED Fixture | 420W LED Fixture | 830W LED Fixture |
---|---|---|---|---|
Model No. | 160W | 240W | 420W | Expert-830 |
Dimension | 500*500*50mm | 560*560*90mm | 850*850*90mm | 1100*1100*80mm |
Power Consumption | 160W±5% | 240W±5% | 420W±5% | 830W±5% |
Application | Indoor Growing | Indoor Growing | Indoor Growing | Indoor Growing |
Recommended Height | Not specified | 30cm-40cm | 30cm-40cm | 30cm-60cm |
Power Supply | Sosen LED Driver | Sosen LED Driver | Sosen LED Driver | Sosen LED Drivers |
AC Input | AC100-277V 50/60 Hz | AC100-277V 50/60 Hz | AC100-277V 50/60 Hz | AC100-277V 50/60 Hz |
Light Source | 560pcsx 4000K lm281b+ Pro LEDs + 24pcsx 3w 660nm LEDs + 8pcsx UV LEDs + 8pcsx IR LEDs | 860pcsx 4000K lm281b+ Pro LEDs + 28pcsx 3w 660nm LEDs + 8pcsx UV LEDs + 8pcsx IR LEDs | 1624pcsx 4000K lm281b+ Pro LEDs + 80pcsx 3w 660nm LEDs + 16pcsx UV LEDs + 16pcsx IR LEDs | 2880 * Samsung LM281B+ Pro + 192 * Honglitronic SMD3535 660nm + 24 * SMD353 385nm (UV) + 24 * SMD3535 730nm (IR) |
Efficacy | 2.7 umol/j | 2.7 umol/j | 2.75 umol/J | 2.86 umol/J |
PPF | 432 umol/s | 648 umol/s | 1155 umol/s | 2288 umol/s |
LED Spectrum | Full Spectrum+ UV+ IR for all stages of plants | Full Spectrum+ UV+ IR for all stages of plants | Full spectrum+ UV+ IR for all stages of plants | Full Spectrum + UV + IR |
Net Weight | 4KG | 4.2KG | 6.4KG | 13.5KG |
Gross Weight | 5KG | 5.5KG | 7.5KG | 15.5KG |
Power Factor | >0.9 | >0.9 | >0.95 | >0.9 |
Control | Knob dimming 0-25%-50%-75%-100% for a single light | Knob dimming 0-25%-50%-75%-100% for a single light | Knob dimming 0-25%-50%-75%-100% for a single light | Manual Dimming and external control with Pureled Pro Controller |
Daisy-Chain Support | Support 256 * LED fixtures Daisy-Chain by Expert Controller | Support multi-lights connected control via led controller | Support multi-lights connected control via led controller | Daisy-Chain Controlling via LED Controller |
Beam Angle | 120 Degree | 120 Degree | 120 Degree | 120 Degree |
Working Temperature | -20℃ to 35℃ | -20℃ to 35℃ | -20℃ to 35℃ | -20℃ to 35℃ |
Warranty | 3 Years | 3 Years | 3 Years | 5 Years |
